MINI VALVE Model No. 36
Mini Valve for Single-Acting Units

Saves space on the machine table because it attaches directly to the vise... one less item to worry about during set-up or tear-down. The inlet and exhaust ports are interchangeable so the air hose can be connected to either side of the valve. The valve has a unique, over-center snap action, giving a quick, sure response. The lever is detented in both positions. The operator does not need to hold the lever in either direction. The #36 Mini Valve may be used as an alternative to the Heinrich 3-way Foot Treadle Valve (#34-12CI) or 3-way Hand Valve (#34-18). The Mini Valve is sold complete with all the fittings needed to replace either the foot or hand valve.

Model No. Shipping Weight Net Price
36 0.5 lb. $69.73

AIR VALVE Model No. 34
Air Valve Single-Acting

Three Way Air Valve for actuating single-acting cylinders. Hardened steel plunger button, spring return, for cam operation. 1/4" NPS male fittings. Two 3/16" mounting holes.

Model No. Shipping Weight Net Price
34 1 lb. $24.61

FOOT TREADLE VALVE Model No. 34-12CI
Foot Treadle

Foot operated, three-way air valve, for instant, hand-free operation of units with single-acting air cylinders (one, or several units). Treadle remains open or closed without constant foot pressure. 1/4" NPS male fittings. Four 1/4" mounting holes in base.

Model No. Shipping Weight Net Price
34-12CI 5 lb. $71.87

HAND VALVE Model No. 34-18
Hand Valve for Single-Acting Units

Hand-operated, three way-air valve, for quick operation of units with single-acting air cylinders. Valve remains open or closed without constant hand pressure. 1/4" NPS male fittings. Four 3/16" mounting holes in base.

Model No. Shipping Weight Net Price
34-18 2 lb. $123.06

AIR HOSE Model No. 34-14
Air Hose

For use with all Heinrich Air Units. 5-ft length, 1/4" I.D., with 1/4" NPS female swivel fittings, two hoses required for single-acting units.

Model No. Shipping Weight Net Price
34-14 1 lb. $15.04
MINI VALVE APPLICATION PHOTOS
Mini Valve Application
Mini Valve Application

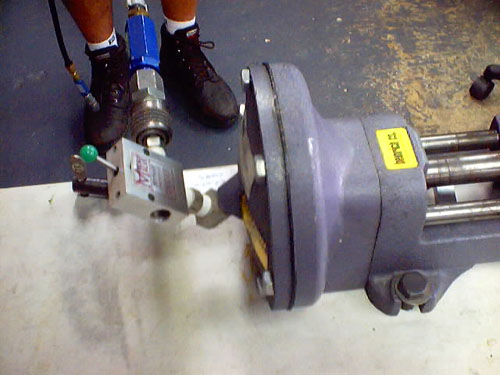

(Photo 1) A #36 Mini Valve attached to a single acting air vise. The customer is using a quick disconnect fitting for the supply.

(Photo 2) The same set-up. Notice how compact the valve and vise are. The inlet / outlet ports can be on either side. This lends itself for easy hose routing.
