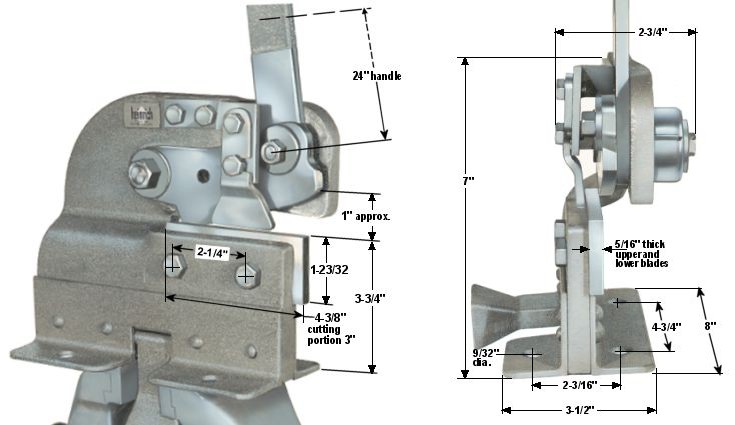

PORTABLE SHEAR Model No. 1
Mounts on any base, all steel construction and compounded leverage provides easy cutting action.
Outstanding feature is a hinged latch, which when clamped lengthwise or crosswise in a vise, provides a firm mounting. Easily portable to the job.
The latch is hinged to fold out of the way for bench mounting. Frame constructed to permit shearing of wide sheets, straight cuts or outside curves. Tool steel blades are interchangeable and easily removed for sharpening.
SHEARING CAPACITY - 1/8" Mild Steel
ROD CUTTING CAPACITY - 5/16" Round
| Model No. | Shipping Weight |
|---|---|
| 1 | 17 lb. |

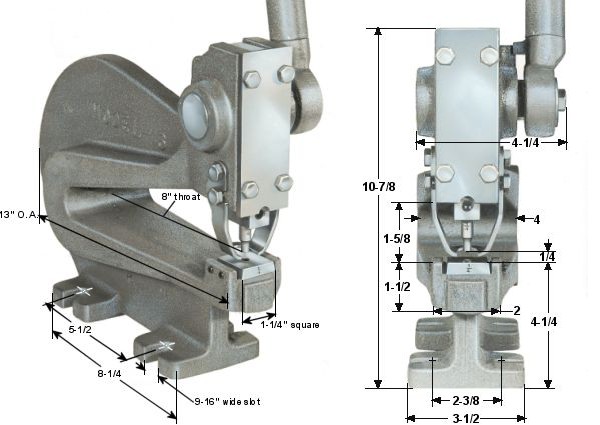

DEEP THROAT BENCH PUNCH Model No. 6
Full eight-inch throat depth allows maximum utility for punching wide stock, and punches to the center of a 16" circle. The double crank handle drive provides easy operation. The body is ductile iron and wearing parts are hardened and ground.
PUNCHING CAPACITY - 1/2" hole through 1/8" mild steel
| Model No. | Shipping Weight |
|---|---|
| 6 | 42 lb. |
| Price includes 1/4" Round Punch and Die Set unless other size is specified. | |
| Standard Round Punch & Die Sizes |
Standard Square Punch & Die Sets |
|---|---|
| Model No. | Model No. |
| H-71 Punch |
H-71 Punch SQ |
| H-72 Die |
H-72 Die SQ |
| SET | SET |
| Round Sizes: 1/16", 3/32", 5/64", 7/64", 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2" |
Square Sizes: 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2" |

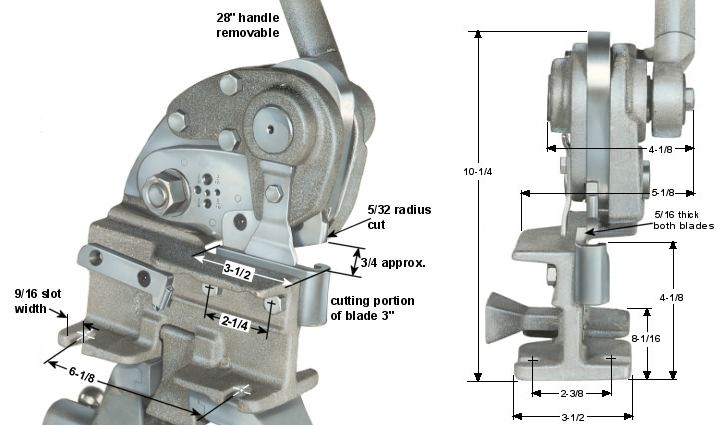

HANDNIB Model No. 4
Double crank construction makes operation easy. A Combination Nibbler, Shear and Rod Cutter - For Vise or Bench Mounting.
The body is cast steel; tool steel blades and rod cutting dies are interchangeable and may be sharpened. All wearing parts are hardened and ground.
The vise-mounting latch is hinged to fold out of the way for bench mounting. Frame construction allows shearing of wide sheets, straight cuts or outside curves.
SHEARING AND NIBBLING CAPACITY - 3/16" Mild Steel
ROD CUTTING CAPACITY - 3/16", 1/4", 5/16", 3/8"
| Model No. | Shipping Weight |
|---|---|
| 4-A | 29 lb. |
| 4-B | 29 lb. |
| Nibbles irregular shapes, inside or outside. Inside nibbling depth of cut 4" from any outside edge. | |
